Home Part Search Alternator | ALT1010U

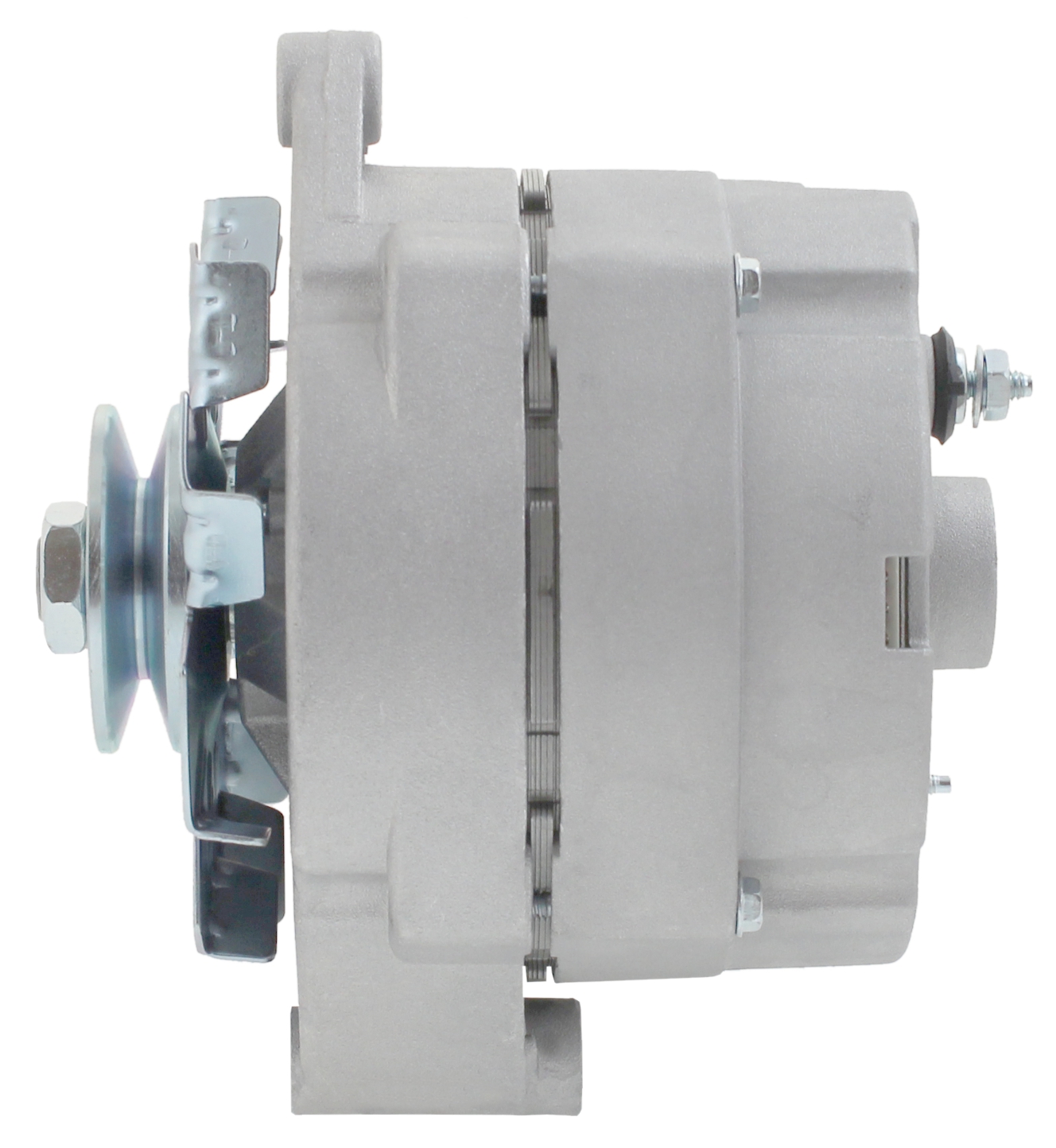

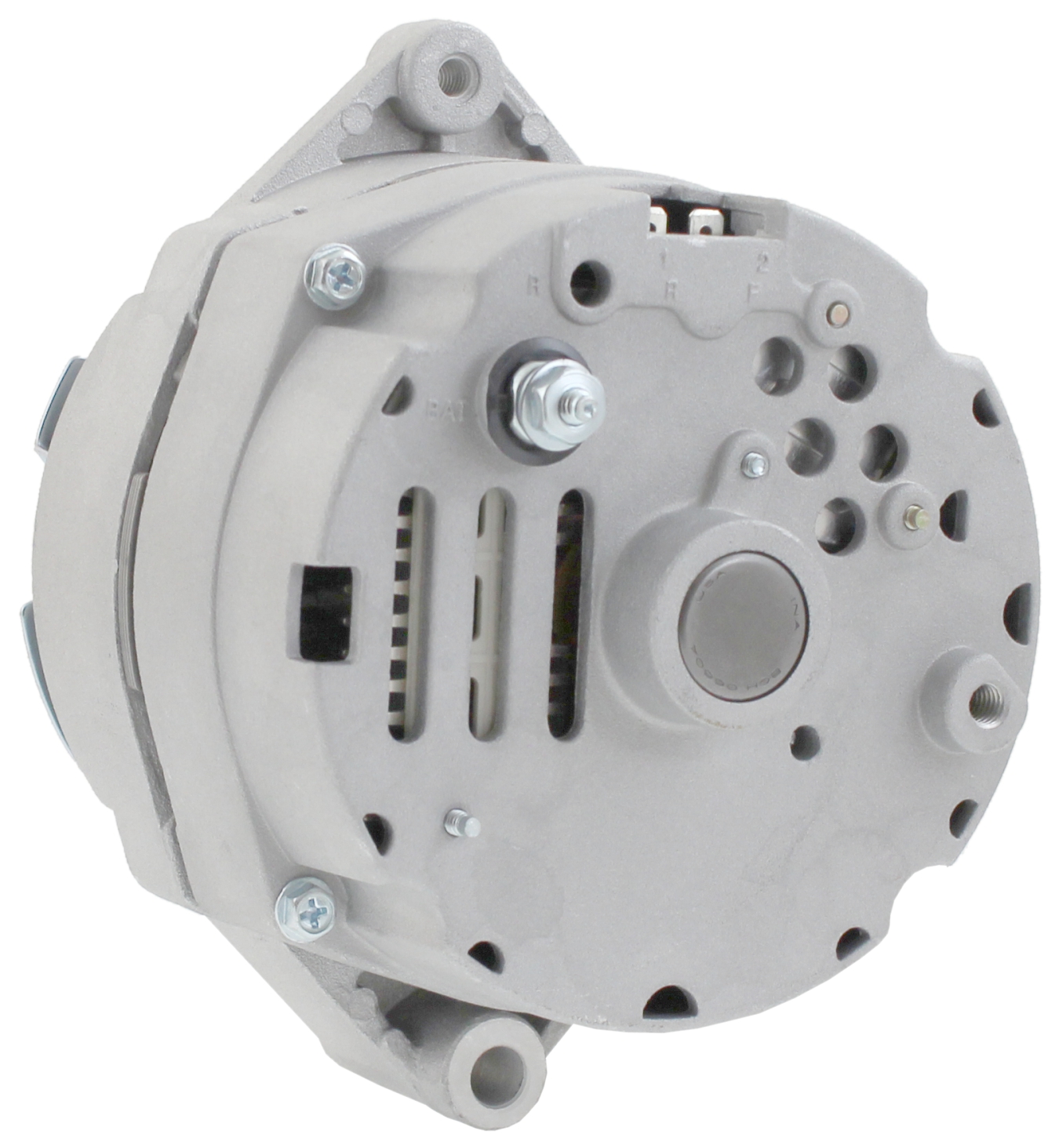

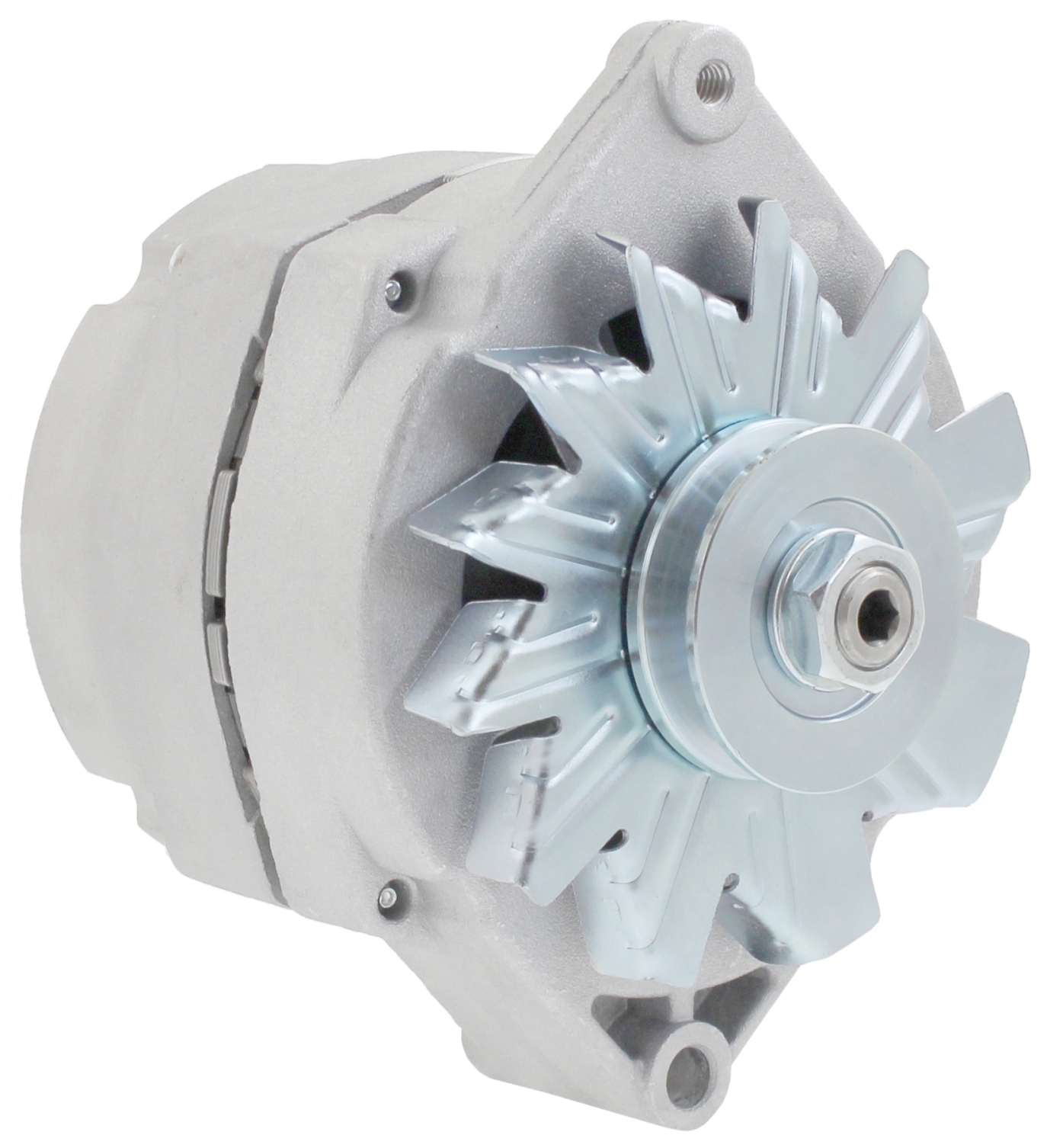

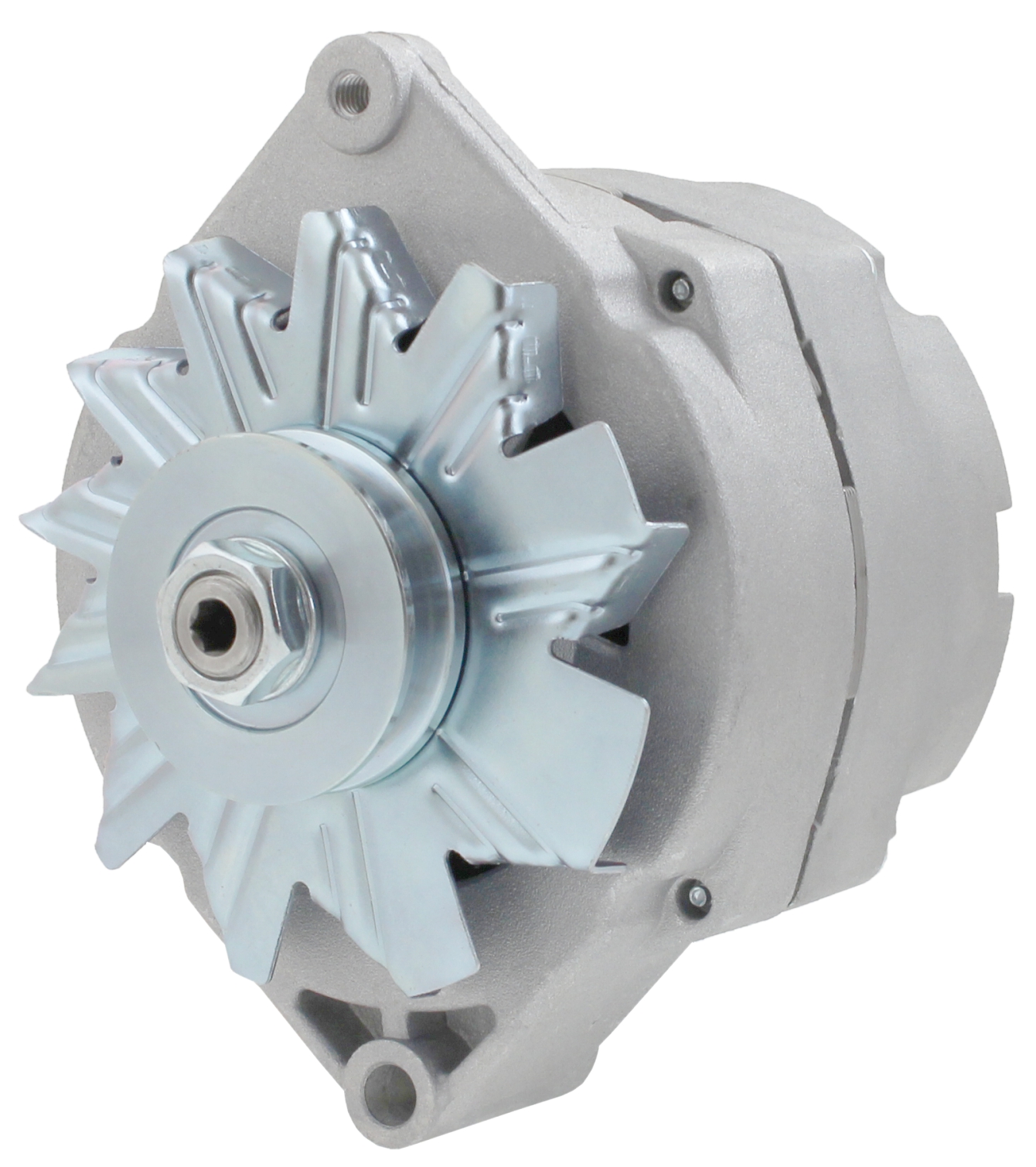

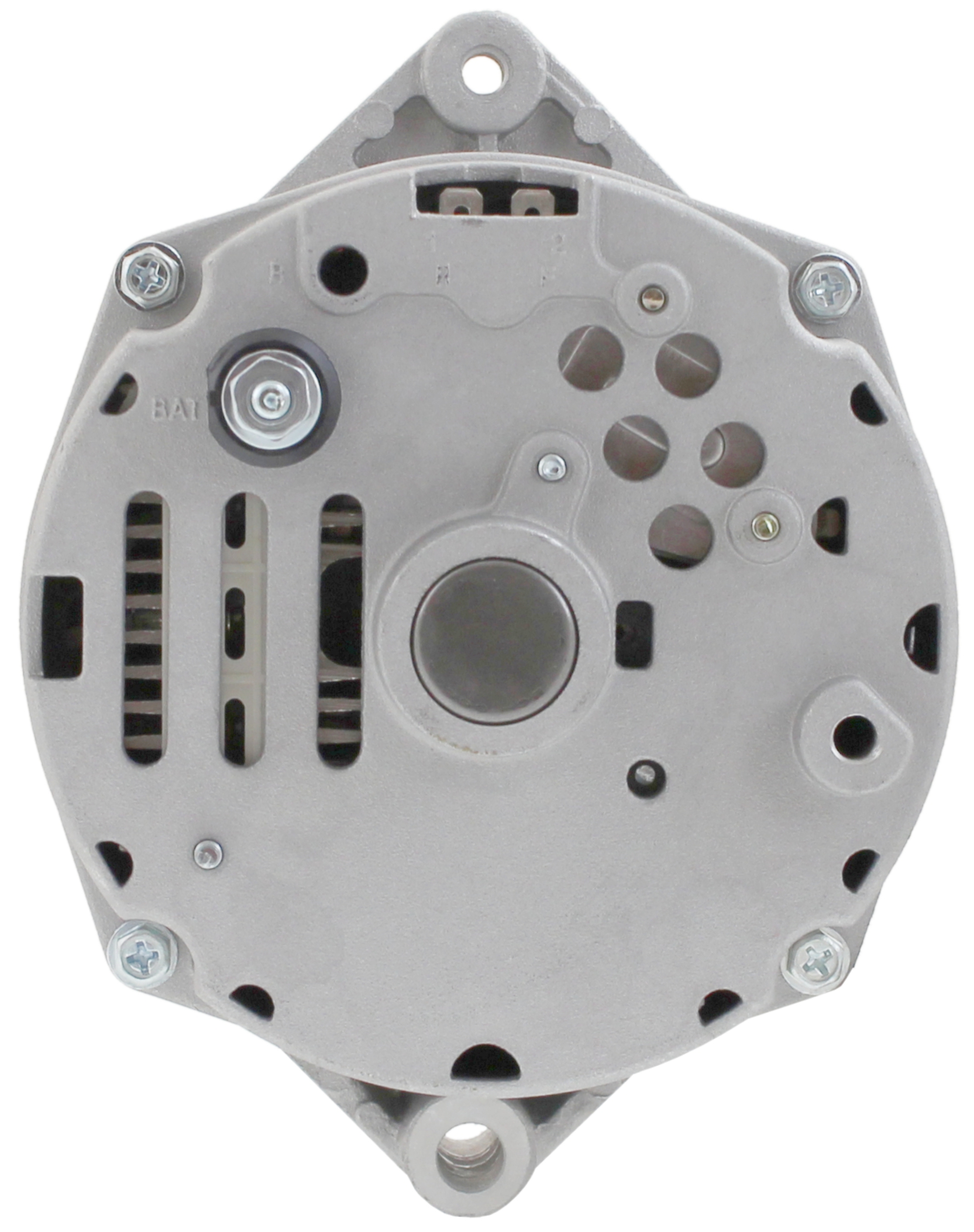

Alternator | ALT1010U
SPECS
100% New Alternator 12 Volt 63 Amp USA Assembled Fits Alliss Chalmers AC-P20, AC-P25 Clark C500-35, C500-40 and More
| Features | Benefits |
|---|---|
| Drop-in Replacement | Engineered to match OEM design in appearance, fit and function |
| 100% New Unit | Premium Quality brand new Alternator supplied without core charge |
| Performance Guaranteed | 100% Computer Load Tested for Performance and Reliability |
| Heavy Duty Design | Premium Bearings, High Capacity Diodes, Rectifiers and Electronics Ensure Long Life |
| DETAILED SPECIFICATIONS | |
|---|---|
| Amperage | 63 |
| Clock Position | 12 |
| Clutch Pulley | No |
| Family | 10SI |
| Fan Type | External |
| Ground Type | N |
| Plug Type | 151 |
| Pulley Belt Type | V-belt |
| Pulley Grooves | 1 |
| Pulley O.D. | 56 |
| Regulator Type | Internal |
| Rotation | CW |
| Voltage | 12 |
Reference Part Numbers
| ACDelco | AIM | Amsco | Arrowhead | Baker | BBB Industries | Beck Arnley | Beck Arnley New | Bosch Reman | Bowers | Canadian Tire | CARQUEST | Caterpillar | Clark Lift Truck | Cummins | Delco | Delco Reman Europe | Dixie Electric Ltd | Dixie Electric New | Fiat | General Motors | Hyster | IAT | J&N | John Deere | Just Parts | Karam | Lester | Lucas (Europe) | Lucas Reman | Minnpar | MPA | MPA X | MPA X New | NAPA | NAPA New | NSA | PIC | RCP | REAL | Remy | Road Force | Stratoline | Towmotor | Unipoint | Unknown | WAI | Wilson | Wilson New |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
321-148
321-42
321-46
321-47
334-2112A
334-2113
334-2115
334-2116
334-2117
334-2118
334-2121
334-2123
334-2143
335-1093
|
AO-0010R
AO-0011R
AO-0011R1
AO-0011R2
AO-0019R1
|
DA-587
|
ADR0239
APM0006
|
118434
|
7127-12
7185-12
7185-3
|
186-6020
186-6021
|
188-6020
|
AL532X
|
BAO3084
BAO3086
|
194801
194805
194807
|
7127-3A
7185-3A
|
9G6080
|
1536554
1830821
2314007
2334014
2354002
2354003
6513962
907739
|
3604663RX
|
1100125
1100131
1100132
1100166
1100168
1100175
1100176
1100218
1100221
1100222
1100226
1100267
1100268
1100477
1100491
1100543
1100544
1100545
1100546
1100554
1100556
1100563
1100578
1100579
1100580
1100581
1100588
1100872
1100873
1100874
1100881
1100882
1100884
1100900
1100911
1100919
1100922
1100923
1100924
1100925
1100936
1100937
1100940
1100946
1100947
1100948
1100950
1101166
1101196
1102353
1102359
1102376
1102380
1102381
1102386
1102388
1102389
1102390
1102391
1102392
1102399
1102400
1102457
1102460
1102461
1102468
1102469
1102474
1102475
1102476
1102484
1102487
1102500
1102560
1102847
1102848
1102849
1102851
1102856
1102858
1102863
1102866
1102867
1102869
1102876
1102877
1102882
1102884
1102893
1102900
1102902
1102908
1102909
1102915
1102941
1103036
1103037
1103039
1103040
1103041
1103062
1103063
1103091
1103092
1103105
1103117
1103122
1103161
1103163
1103168
1103170
1103182
1105033
1105067
1105193
1105478
1105691
1105703
1975630
1979860
1979862
1979867
TP-TY6600
|
DRZ0100
|
A-1136
A-1138
A-1139
A-1149
A-1158
A-1187
A-144
A-145
A-145T
A-146
A-146T
A-148
A-149
A-184
MA-102
|
101-10100
101-10103
101-10109
|
73117180
73117183
73125070
73125071
|
19151871
|
241347
267255
271256
280594
281029
281039
286995
289347
3000963
302822
302823
302824
322175
322179
341677
343027
343035
|
110-7127
A7127-12
A7185-12
|
400-12003
400-12003R
400-12005
400-12005R
400-12007
400-12007R
400-12010
400-12010R
400-12011
400-12089
400-12089R
400-12246
|
AR54796
AR56728
RE31694
|
D1-0011N
D1-0015
|
A320-150
A320-230
|
7127-12
7185-12
|
LRA01214
LRA01219
LRA1214
LRA1219
|
A1734-12
|
47-1222
|
7127112
7127212
7128112
|
X6718512
X7127112
|
X7127112N
|
13-4001
13-4007
13-4010
13-4010A
13-4010C
13-4011
13-4011A
13-4011C
13-4015
13-4031
13-4032
13-4033
13-4070
13-4201
13-4202
1N4011
1N-4011
1N4011A
1N-4011A
1N-4011B
213-4010A
213-4011A
213-4011C
213-4031
|
1N-4011
1N-4011A
1N-4011B
|
ALT-1010
|
240-200
240-200-0A
240-200-0C
240-206
240-206-0D
240-206-0E
240-217
|
48932
48934
48983
48983R
48995
AL-7127
|
10-1023
20109005
20109007
20109012
20188008
|
200391
20042
20043
200431
|
RF419068110
RF439032332
RF599091994
|
80-7127-12
80-7127-3
|
308591
347205
|
ALT-1010
ALT-1010A
ALT-1010AS
ALT-1023
|
TP-TY6600
|
1-1755-11DR
1-1755-13DR
1-1755-18DR
1-1758-11DR
1-1758-13DR
1-1758-18DR
20-102-2
20-102-9
20-104
7127-12N
7127-12R
|
90-01-3106
90-01-3141
|
90-01-3106N
90-01-3141N
|
